 Valves Home Latching Solenoid Valves
Latching bi-stable Solenoid Control Valves.Latching or Bi-stable solenoid valves are typically Green or Environmentally Friendly solenoid valves as they do not require a constant electrical power supply to remain in a closed or open state. latching brass, stainless steel or plastic solenoid valves require only a short electrical power pulse or signal to change state (open or closed) as the latching solenoid valve remains in position usually with the aid of an internal electrical solenoid valve magnet or solenoid valve latching system. Typical operation of a latching solenoid valve would be one short electrical power pulse to change the solenoid valve from closed to open state and stay OPEN even when power is removed. To change the state i.e. close the bistable latching solenoid valve you need to reverse the electrical polarity (i.e. swap +ve to -ve and -ve to +ve) and send a short electrical Power Pulse again to the solenoid valve to change its state to the closed position where it will stay even without power supply. Be careful that the electrical power supply is reversed to change the state of the latching solenoid valve, otherwise it will only stay in its original state for example power to close latching solenoid valve if electrically pulsed the same will remain closed, the same rule applies if electrically energized to open and re-energised the same why the latching solenoid valve will only stay in the same state - open. Latching solenoid valves are available from 1/8 to 2" BSP or NPT thread and Flanged options are available from DN10 to DN500 PN16 or ANSI150Lb flanges. Latching solenoid valve pressure ranges from Vacuum to 300 Bar, in Brass, Plastic and Stainless Steel. Please find below some the more popular latching and bi-stable solenoid valves.

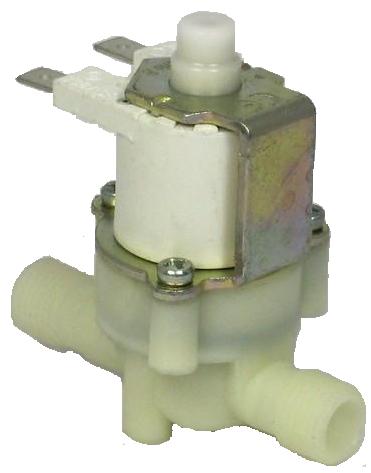

| Latching solenoid valve Nylon RPE: 115BB Function: 2/2 way latching Operation: pressure servo assisted diaphragm Voltage: 6vDC (can handle short bursts to 12volt) Pressure 0.2 to 10 Bar Body: nylon Seals: NBR Media: water Port Sizes: 1/4 to 3/4 BSP male, female or 15mm Push Fit |
| Latching solenoid valve delrin: LPA Function: 2/2 way latching (bi-stable) Operation: servo pressure assisted diaphragm Voltage: 12vdc or 24vdc Pressure 0.5 to 10 Bar Port Sizes 3/8,1/2,3/4, 1,11/4 and 11/2 BSP or NPT Body: Delrin (POM) Seals: EPDM, FKM, NBR, FFKM or Silicone |
| Latching solenoid valve brass high pressure mini: LAD6000 Function: 2/2 latching (Bi-Stable) Operation: Direct Acting Voltage: 12v or 24vdc Pressure: 0 to 42 Bar Port Size: 1/8 BSP or NPT thread Body: Brass Seals: FKM, NBR, EPDM, PTFE, FFKM, Silicone |
| Latching solenoid valve brass high pressure mini: LAD8000 Function: 2/2 latching (bi-stable) Operation: direct acting Voltage: 12v or 24vdc Pressure: 0 to 42 Bar Port Size: 1/4 BSP or NPT thread Body: brass Seals: FKM, NBR, EPDM, PTFE, FFKM, Silicone |
| Latching solenoid valve brass miniature: LAD612 Function: 2/2 latching (bi-stable) Operation: direct acting Voltage: 12v to 24vdc Pressure: 0 to 3.5 Bar Port Size: 1/8, 1/4, 3/8 or 1/2 BSP or NPT thread Body: brass Seals: FKM, NBR, EPDM, PTFE, FFKM, Silicone |
| Latching solenoid valve brass: LAD Function: 2/2 latching (bi-stable) Operation: assisted lift diaphragm Voltage: 12v to 24vdc Pressure: 0 to 3.5 Bar Port Size: 3/8 to 2" BSP or NPT thread Body: brass Seals: FKM, NBR, EPDM, FFKM, Silicone |
| Latching solenoid valve brass steam: LAD6000 Function: 2/2 latching (bi-stable) Operation: pressure servo assisted piston Voltage: 12v or 24vdc Pressure: 0.5 to 20 Bar Port Size: 3/8 to 2" BSP or NPT thread Body: brass Seals: PTFE |
| Latching solenoid valve stainless high pressure: LADS6000 Function: 2/2 latching (bi-stable) Operation: direct acting Voltage: 12v to 24vdc Pressure: 0 to 42 Bar Port Size: 1/8 BSP or NPT thread Body: 316 stainless steel Seals: FKM, NBR, EPDM, PTFE, FFKM, Silicone |
| Latching solenoid valve stainless high pressure: LADS8000 Function: 2/2 latching (bi-stable) Operation: direct acting Voltage: 12v to 24vdc Pressure: 0 to 42 Bar Port Size: 1/4 BSP or NPT thread Body: 316 stainless steel Seals: FKM, NBR, EPDM, PTFE, FFKM, Silicone |
| Latching solenoid valve stainless miniature: LADS612 Function: 2/2 latching (bi-stable) Operation: direct acting Voltage: 12v to 24vdc Pressure: 0 to 3.5 Bar Port Size: 1/8, 1/4, 3/8 and 1/2 BSP or NPT thread Body: 316 stainless steel Seals: FKM, NBR, EPDM, PTFE, FFKM, Silicone |
| Latching solenoid valve stainless Series: LADS Function: 2/2 latching (bi-stable) Operation: assisted lift diaphragm Voltage: 12v or 24vdc Pressure: 0 to 3.5 Bar Port Size: 3/8 to 2" BSP or NPT thread Body: 316 stainless steel Seals: FKM, NBR, EPDM, Silicone, FFKM |  | High Pressure solenoid valve latching Series EN52000 Brass 2/2 latching (bi-stable) Function: direct acting Pressure: 0 to 300 Bar Voltage: 12vDC or 24vDC Body: Brass Port Sizes: 1/8 + 1/4 BSP or NPT thread |
|  | |
